LSH genes are required for the development of nodule primordia that can support bacterial colonisation: Confocal image of WT and lsh1/lsh2 roots 24 and 72 hpi with S. meliloti (n > 30 per genotype and time point). The root was spot-inoculated with Sm2011 imaged at 72 hpi. Sm2011-mCherry bacteria in red, cell walls in white (fluorescent brightener), and EdU-labeled nuclei indicating DNA replication in green. Reference: Lee et al, Current Biology (2024).
Two genetic factors previously linked to above-ground shoot development are essential to differentiate symbiotic root nodules from lateral roots
Cambridge scientists have identified two crucial genetic factors needed to produce specialised root organs that can accommodate nitrogen-fixing bacteria in legumes such as peas and beans.
In a surprising twist, the developmental regulators that confer the identity of these organs – known as nodules – belong to a transcription factor family more commonly associated with defining the shapes of stems, flowers and leaves. These factors are broadly conserved in plants, indicating their nodule-specifying function in legumes is a more recent innovation.
This significant discovery brings us one step closer to potentially engineering non-legume cereal crops like wheat, rice and maize to develop root nodule organs to host nitrogen fixing bacteria and reduce our reliance on industrial nitrogen fertilisers produced via the energy consuming Haber Bosch Process.
This latest research, led by Dr Katharina Schiessl (pictured above), a Career Development Fellow at the Sainsbury Laboratory Cambridge University (SLCU), builds on her earlier findings that the same genetic programme underlying lateral root development also underpins root nodule initiation.
Dr Schiessl’s discovery takes us a step further along the pathway of understanding how this symbiotic relationship is established between beneficial soil bacteria and legumes and how it is maintained to support biological nitrogen fixation. And with the discovery that legumes are recycling genetic programmes that are used by many species of plants, including cereals, the engineering task could be a whole lot less complicated.
Published in Current Biology, “Light-sensitive short hypocotyl genes confer symbiotic nodule identity in the legume Medicago truncatula”, was a collaboration between scientists working at SLCU, the Crop Science Centre at the University of Cambridge's Department of Plant Sciences, John Innes Centre, University of Freiburg, Oklahoma State University and Royal Botanic Gardens, Kew.
Their research identified two genetic factors, named LIGHT-SENSITIVE SHORT HYPOCOTYL (LSH1/LSH2), promote the production of specialised root cells that are required to make the developing nodule structure a suitable home for the nitrogen fixing bacteria – conferring nodule organ identity.
“We show two members of the LIGHT SENSITIVE SHORT HYPOCOTYL (LSH) transcription factor family are functioning as regulators of nodule organ identity,” Dr Schiessl said. “LSH1/LSH2 enlist a programme in a root tissue called the cortex that facilitates the formation of a group of cells that are infectable and habitable by the bacteria early during nodule development. At the molecular level, this involves inhibiting the default lateral root program, controlling the dynamics of the plant hormones auxin and cytokinin, and promoting the expression of the previously identified key nodule organ identity regulators NODULE ROOT1/2 and Nuclear Factor Y-A1.”
LIGHT SENSITIVE SHORT HYPOCOTYL (LSH) are required for N-fixing nodules: Whole-mount images of WT and lsh1-1/lsh2-1 nodules 28 days post S. meliloti inoculation. GUS staining (blue) indicates the expression of the bacterial pNifH promoter. Scale bars, 500 μm. Left image shows WT=20% white – 80% blue, and right image shows lsh1-1/lsh2-1= 95% white – 5% in part blue). Reference: Lee et al, Current Biology (2024).

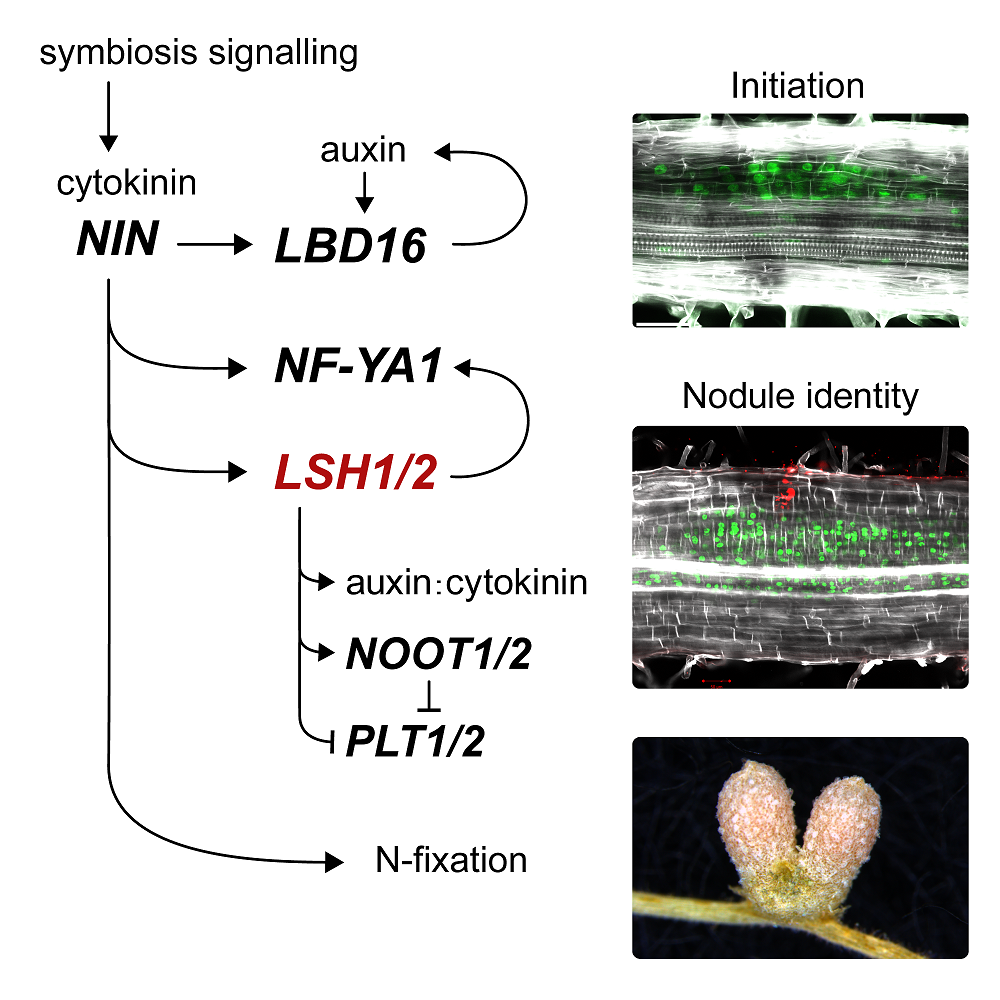

In summary, the research shows that root tissues can be reprogrammed by pre-existing shoot programmes and includes a proposed model for specification of nodule development: cytokinin activation of NIN expression initiates the nodule primordium through induction of LBD16, which activates local auxin biosynthesis to drive cell divisions in a manner comparable to lateral root initiation. Activation of LSH genes then confers nodule organ identity.
“This finding that legumes are harnessing pre-existing developmental regulators and their associated downstream networks to generate purpose-built organs with novel forms and functions is essential for future engineering of biological nitrogen fixation, Dr Schiessl said.”
Dr Schiessl’s newly formed research group at SLCU is continuing to explore the regulatory pathways and cellular processes of coloniser-induced organ development, studying symbiotic root nodules and parasitic galls.
Loss of LSH1/2 leads to a severe reduction of fully colonised nodule primordia: Images of WT and lsh1/lsh2 nodule primordia at emerged primordia stage observed 7 days post spray inoculation with rhizobial bacteria expressing LacZ (blue stain). Black arrowheads indicate infection threads that are restricted in their progression into the inner root tissue layers. Reference: Lee et al, Current Biology (2024).
Conferring symbiotic root nodule organ identity The accommodation of nitrogen fixing bacteria is endosymbiotic, inside specialised cells in the root nodule and requires three key processes: 1) the recognition of the bacteria as friends, 2) their friendly invasion via an infection thread stretching from the root hair to the inner tissue layers of the root, and 3) the accommodation of the nitrogen fixing bacteria inside vesicles of specialised cells in the nodule. The symbiotic interaction starts with an exchange of very sophisticated signals which permit the friendly invasion by the bacteria via the root hair and into the inner tissue layers where the bacteria meet the group of newly divided cells that have specialised to take up the bacteria inside of vesicles with suitable conditions for biological nitrogen fixation – the conversion of nitrogen in the air to ammonia, a plant available form of nitrogen. While symbiotic root nodules are specialised structures that are induced in response to nitrogen fixing soil bacteria in the roots of legumes, the researchers found a re-networking of pre-existing developmental pathways with conserved functions observed in above-ground shoot organs of both legume and non-legume plants was involved in conferring root nodule identity. This is similar to Dr Schiessl’s earlier research that found plants recycle a genetic programme used in initiating lateral roots to also initiate root nodules. This new research identified the LSH1/LSH2 genetic programme, which is recognised as being involved in shoot meristems and organ boundaries in leaves and flowers, was being recruited in roots to confer nodule identity. The researchers confirmed that LSH genes function as key regulators and integrators of nodule organ identity and differentiate nodules from lateral roots on top of the shared lateral-root like initiation program. “We have shown that LSHs directly promote cell divisions in the root cortex that support bacterial colonisation and promote expression of the previously identified and well-known nodule organ identity genes NOOT1/NOOT2 and NF-YA1, Dr Schiessl said.” |
Funding
The lab pursued this work as part ofEnabling Nutrient Symbioses in Agriculture (ENSA)an international research project that aims totransform how crop plants acquire nutrients, such as nitrogen and phosphorus, achieving a radical shift away from the application of inorganic fertilisers to harness naturally occurring plant processes with support from the Bill & Melinda Gates Agricultural Innovations.
Established in 2012, ENSA is a partnership between the University of Cambridge Crop Science Centre, Aarhus University, University of Oxford, Albert-Ludwigs-Universität Freiburg, NIAB, Université Toulouse III Paul Sabatier, University of Illinois and Wageningen University.
Reference
Tak Lee, Martina Orvosova, Morgane Batzenschlager, Marcelo Bueno Batista, Paul C. Bailey, Nadia A. Mohd-Radzman, Aram Gurzadyan, Naomi Stuer, Kirankumar S. Mysore, Jiangqi Wen, Thomas Ott, Giles E.D. Oldroyd, Katharina Schiessl (2024) Light-sensitive short hypocotyl genes confer symbiotic nodule identity in the legume Medicago truncatula. Current Biology
